Apache Iron Works Equipment
Jaw, Cone, and Gyratory Crushers
Apache Iron Works designs and manufactures jaw, cone, and impact crushers for the mining and aggregate industries. Built for maximum throughput and durability.
What makes the Apache PJS jaw crusher one of the heaviest in its class?

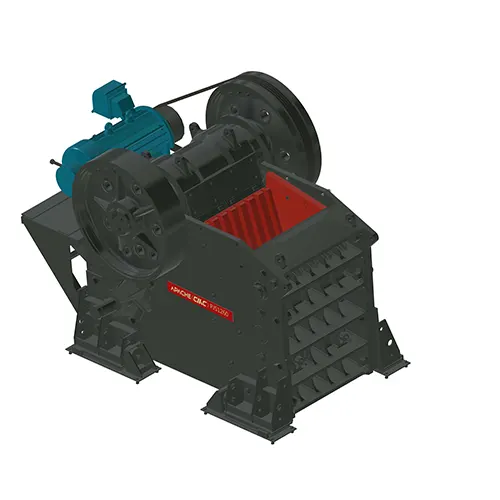

The Apache PJS HD Modular Jaw Crusher uses a modular bolt-together design built for the toughest mining applications. Size for size, Apache PJS jaw crushers are among the heaviest in the industry.
- Modular bolt-together design
- Cast steel backing beam and heavy-duty cast steel pitman
- Precision machined fabricated steel side plates (Nippon Steel Japan)
- Jaw dies — reversible jaw dies for maximum wear life. Various configurations
- Optional shock absorbing mechanism — mounted to base of fixed side to absorb shock of falling rock and lessen impact on conveyor belt
- Twin hydraulic wedge adjust system — allows for fast closed side setting
- Modular base jaw mount — allows for adjustable mount. Includes rubber isolators
- Frame and pitman bearings — SKF or FAG oversized bearings with superior load ratings
- Grease lubrication — optional remote greasing package available
- Crusher drive motor & mount — 1200 RPM TEFC crusher duty electric motor. Integrated motor mount, drive belts, sheave, bushings
- Size for size, Apache PJS Jaw Crushers are among the heaviest jaw crushers in the industry
How does the PF Series cone crusher produce a cubical product?
The Apache PF Series is a next-generation high-speed cone crusher. Its high-speed crushing action produces cubical particles for mining and aggregate plants.
- High-speed crushing action producing cubical particles
- Hydraulic tramp iron relief
- Fast hydraulic bowl ring gear CSS adjustment
- Premium manganese
- Integrated lubrication system
- Multiple chamber configurations
- 1200 RPM Crusher Duty TEFC Electric Motors
Can the LS Series replace an existing cone crusher without a new foundation?
The Apache LS Series Legacy Cone Crusher is a proven, cost-effective design that will-fit many cone crushers already in operation. It is compatible with existing foundations and gives easy access to wear parts.
- Will-fit replacement for many cone crushers
- Proven mechanical design
- Easy access to wear components and machine parts
- Compatible with existing foundations
- Cost-effective alternative
- 1200 RPM Crusher Duty TEFC Electric Motors
When should you use a GP Series gyratory crusher instead of a jaw?
The Apache GP Series Gyratory Crusher is built for high-volume primary and secondary crushing. A robust spider and mainshaft, large feed opening, and automated PLC control make it a fit for 24/7 mining operations.
- 1200 RPM Crusher Duty TEFC Electric Motor
- High-volume throughput
- Designed for primary and secondary crushing applications
- Robust spider and mainshaft
- Dust sealing system
- Ideal for demanding 24/7 mining operations
- Premium alloy wear liners
- Lubrication system with motor and cooling
- Large feed opening
- Automated PLC control with CSS adjustment
What crushing configurations does the MV Series VSI crusher support?
The Apache MV Series Modular Chamber VSI Crusher can run Rock on Rock (ROR), Rock on Steel (ROS), or Steel on Steel (SOS). Models from MV150 to MV850 are rated at 150 to 850 tph depending on the application.
- Rock shelf, standard anvil, and hybrid anvil rings available
- Manufactured in the USA
- Oil Lubrication system
- Hydraulic Lid Lifter
- Common Wear Parts, Drive Belts, and Filters
- MV150 - MV850
- Rated at 150 tph - 850 tph throughput, depending on model and application
Explore More Equipment
Frequently Asked Questions
What types of crushers does Apache Iron Works manufacture?
What is the difference between a jaw crusher and a cone crusher?
Are Apache crushers compatible with other equipment?
How do I get a quote on Apache crushers?
Ready to Get a Quote on Crushers?
Talk with Apache Iron Works about your crusher needs. Our team is ready to help.
