PJS Jaw Crusher
Apache PJS Heavy Duty Modular Jaw Crusher is the product of fifty years of design and manufacturing for the mining industry. Our jaw is engineered to process up to50,000 psi rock in some of the most difficult applications. APACHE is among the heaviest jaw crushers on the market, size for size. When it comes to crushing hard rock weight, mass, speed, and nip angle are keys to a productive jaw crusher. APACHE PJS Jaw Crushers feature:
- Modularbolt-together engineered design. For underground mining applications, our machines can be shipped loose and assembled at the job site
- Adjust-on-the-fly capability. The modern hydraulic wedge adjustment system allows operators to make CSS adjustments with an empty chamber, without shutting the crusher down
- HeavyDuty Cast Pitman and Mean Backing Beam. Strength in the right places
- CNC Machined Side Plates to ensure a tight fit during assembly
- Grease lubrication
- Reversible Jaw Dies
- Integrated Motor Mount as Standard
- Flywheel Drive Guards are Included as Standard
- 1200 RPM Crusher Duty TEFC Electric Motors are included as Standard
Don’t hesitate, contact us for better help and services. Explore all services.
PF High-Speed Cone Crusher
Apache PF Series High-Speed Cone Crusher was designed to produce a cubical rock at high production rates. Our cone incorporates a pedestal design featuring BronzeBushings. This allows the processing of hard rock and tends to be more forgiving when running tramp iron. Bronze Bushings exhibit higher load capacities when compared to roller bearing designs. The PF SeriesHigh Speed Cone is low profile design ideal for portable wheeled and track applications.
- Cast Steel Mainframe with machined seat surfaces.
- Fabricated Steel Bowl Assembly with the replaceable bowl ring gear
- Machined steelhead with bronze bushings, fixed main shaft. Pedestal type design
- Bowl Ring Gear Adjust System (Hydraulic Powered).
- Dual Action Tramp Relief System with replaceable nitrogen-charged bladders
- Hydraulic Lock Cylinders with Cavity Clear Function
- Hydraulic Power Unit(HPU)with oil reservoir, pump, gauges, filter & Electric Motor, all required lines & fittings included as Standard
- Lubrication System Unit(LSU)with oil reservoir, pump, filter & Electric Motor, radiator and fan cooling system (Electric Motor), all required piping and connections included as Standard
- Oil flow and Oil Temperature Switches are integrated into the control system to shut down the cone in the event of overheating or loss of oil pressure.
- 1200 RPM Crusher Duty Electric Motor included as Standard
- Subframe with rubber isolators, adjustable Motor Mount and Drive Guard included as Standard
- Patented Self-Tightening Mantle & Concave–Bowl LinerRequires no backing material

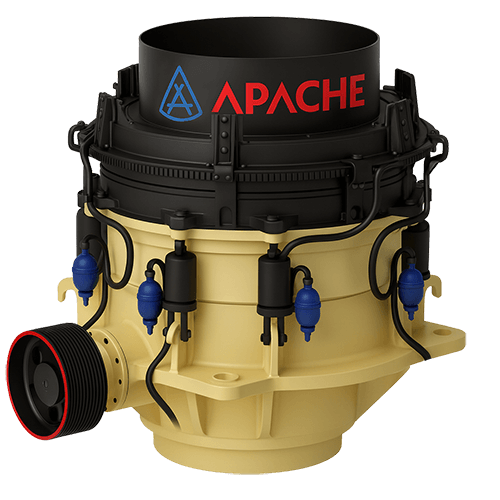

LS Legacy Cone Crusher
Apache Legacy Cone Crusher incorporates traditional design and modern features. Designed to replace aging “slow” speed bronze bushing cone crushers, with minimal changes. Apache LS Cone Crushers are engineered to meet the demanding long service hours of the mining industry. Will fit replacements for domestic 3’ 4-1/4’ 5-1/2’ 7’ and 7’ XHD Cone Crushers
- Cast Steel Mainframe with machined seat surfaces.
- Fabricated Steel Bowl Assembly with the replaceable bowl ring gear
- Machined Steel Head with the main shaft. Shaft-in-Head design (pressed fit)
- Machined bronze bushings exhibit higher tolerance to heat and vibration than roller bearings, and are lower cost to replace when required
- Bowl Ring Gear Adjust System (Hydraulic Powered)
- Dual ActionTramp Cylinder Relief System with nitrogen charged bladdersHydraulic Lock Cylinders with Cavity Clear Function
- Hydraulic Power Unit(HPU)with oil reservoir, pump, gauges, filter & TEFC Electric Motor, all required lines & fittings included as Standard
- Lubrication System Unit(LSU)with oil reservoir, pump, filter & TEFC Electric Motor, radiator&fan cooling system with TEFC Electric Motor, all required piping and connections included as standard
- Modern Grease Seal Design
- Oil flow and Oil Temperature Switches are integrated into the control system to shut down the cone in the event of overheating or loss of oil pressure.
- 1200 RPM Crusher Duty TEFC Electric Motor included as Standard
GP Secondary Gyratory Crusher
APACHEGP Mine Duty Gyratory Crusher is designed as a true secondary, able to process up to 20-inch rock with production rates of up to 1000 tph. The GP Gyratoryis fully automated with PLC Controls can be ordered with four different stroke settings, and has three available crushing chamber profiles to choose from. APACHE GP Series Secondary Gyratory Crushersfeatures include:
- HD Cast Main Frame Upper & Lower-Precision Machined
- Designed to disassemble from the top down for ease of maintenance
- Low Profile Design for a Gyratory Crusher
- Large Feed Opening and Narrow Head Diameter mean the GP Series Gyratory can accept large feed material and still process material with a high reduction ratio.
- PLC features AutomaticHydraulicSetting Adjustment. This program automatically adjusts the closed side setting to maintain consistent sizing and production (accounting for liner wear)
- Material Level Control is available as an option.
- Trellborgaerospace quality oil seals
- Spyder Assembly cylinder shaft is coated with chromium, hardened, and then ground to a smooth finish to ensure tight tolerance and eliminate oil leaks
- Lubrication & Hydraulic system with Interlock Protection
- Sub-base with rubber vibration dampeners, adjustable motor mount, and drive guard
- 1200 RPM Crusher Duty TEFC Electric Motor included as Standard
